When filming the return of the popular expedition race TV show hosted by one of the world’s most famous adventurers and survival instructors Bear Grylls, MGM prepared for shooting in the remote and challenging conditions of Fiji.

The popular format of Amazon Prime saw 280 show participants form 70 teams to race Fiji for 10 days and nights, across 600+km of mostly remote terrain. They traversed mountains, cliffs and canyons, and struggled through impenetrable jungles, paddled rushing rivers and crossed ocean waters.

Their modes of transport included traditional bamboo outrigger canoes and mountain bikes, they rappelled, climbed, whitewater rafted, pack rafted and paddle boarded to make it to each of the 20 checkpoints and, ultimately, the finish line.

With the teams facing demanding conditions, the 600-strong film and support crew was subject to their own challenges: producing high quality, entertaining content, whilst keeping up with the teams and ensuring the safety of participants, hosts and staff at all times.

Two-way radio was the communications medium of choice in this environment where conquering terrain and distances is the privilege of the strong.

~|user~|font-awesome~|solid

Customer Profile

Adventure Race TV Production

i~|icon_documents_alt~|elegant-themes~|outline

Application

Crew communications across remote terrain
Audio recording

~|icon_desktop~|elegant-themes~|outline

Products Used

– 960 SIP Dispatch Console
– IPR400 S2

Business Benefits

Interoperability of Digital And Analog

~|icon_cogs~|elegant-themes~|solid

Reliable System

~|icon_headphones~|elegant-themes~|outline

Remote Communication

~|smile-o~|font-awesome~|outline

Simple to Operate

~|globe~|font-awesome~|solid

Large Distances

The Challenge

The System

RF and IT Engineers Coms Ltd designed the radio system comprising eight robust Omnitronics 960 SIP 6 channel consoles connected to the 4 x ICOM FR5000 base stations via three of the new Omnitronics IPR400 Series 2 Interoperability Gateways.

With 6 helicopters supporting the race, 3 repeater sites were airlifted by helicopter into their mountaintop positions in central Fiji, Fiji’s West, and to an island further East, up to a height of 3500 ft above sea level. A fourth mobile repeater site was circling the airspace on one of the 5 aircraft supporting the event. Aircraft provided additional signal coverage for up to 22 hours each day in areas that were not be covered by the stationary sites. A fifth mobile repeater site was used as required.

The base stations and gateways were geographically located to provide optimum coverage for the race, so that competitors and crew had safety and support easily at hand if required. Another three IPR400 S2 were used to connect Audio Recorders, capturing all two-way radio communications for emergency management purposes and audio recording for the show.

The elaborate setup connects 550 ICOM radios using 2 x 4 channels for events, race, production and search & rescue communications with the support of 6 operators at 2 sites.

Features

2-in-1 Interoperability & Full Multi-Channel RoIP Gateway Software

~|circle~|font-awesome~|solid

Encryption

Protect against unauthorized access & eavesdropping

~|circle~|font-awesome~|solid

Web Configuration

Easy set up, management & diagnostics over IP

~|circle~|font-awesome~|solid

Network Flexibility

Connect in more ways using SIP, multicast or unicast

roip gateway software
~|circle~|font-awesome~|solid

Quickly Link & Re-group

Combine & connect users & agencies on demand

~|circle~|font-awesome~|solid

PTT over Cellular

Use PTToC to listen & speak over connected radios

~|circle~|font-awesome~|solid

Remote Control over IP

Link & cross-band channels remotely using the IPRLink application

The Setup

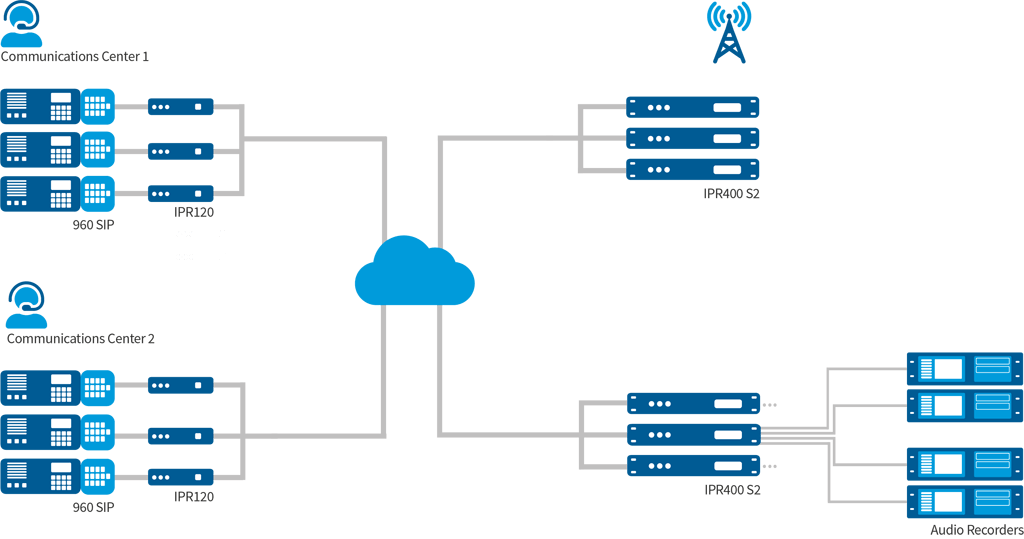

Network Diagram

Case Study

IPR400 S2 Supports Bear Grylls and Eco-Challenge Crew Communications

Conclusion

Ready for Action

With cast moving in unpredictable and rough environments, the producers have put themselves in a good position to guarantee their two-way radio communications offered seamless and reliable voice transmission and recording.

Through careful planning by RF and IT Engineers Coms Ltd, proven Omnitronics technologies 960SIP Dispatch Consoles and the new and improved
IPR400 S2 2in1 Interoperability and RoIP Gateway the team ensured crew and helpers were connected 24/7.

Testimonial

Thank you Letter from Eco-Challenge Producer

 “Dear Mr. Lucas,

It was a great pleasure working with you on the recent Eco-Challenge race across Viti Levu, Fiji.
Without your patience, perseverance and timely delivery of goods and services, we would not
have been able to pull this off.
Thank you and your excellent team for all the wonderful work in establishing the VHF radio
repeater system, and linking it through a remote antenna into the IP network and finally the HQ
– which was a very long way off the racecourse. The supply of the handheld radios, HQ consoles,
mobile base stations, and all the various paraphernalia that made up the successful radio
system was all first class and well thought through. I am also cognizant and thankful that you
recognized the crucial time-lines required to get the equipment purchased and delivered. […]”

Scott Flavelle | Race Technical Director Eco-Challenge

Flyer

IPR400 S2

A 2-in-1 analog Interoperability and RoIP gateway software.
