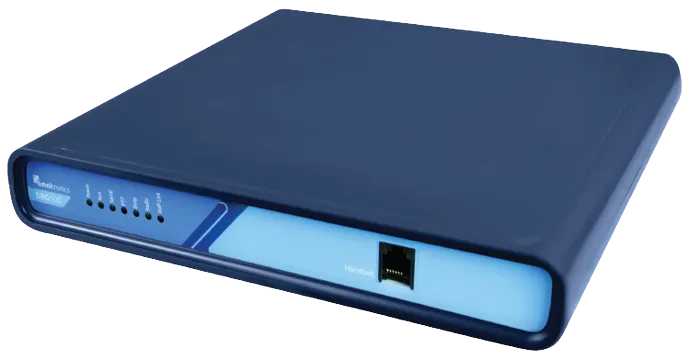

DRG100 OVERVIEW
digital radio gateway
DRG100

One box, many protocols.

One box, many protocols.

One box, many protocols.

 Overview

Why Choose the DRG100 Digital Radio Gateway?

The original Omnitronics Digital Radio Gateway uses proprietary hardware and operating system software to provide a secure, reliable and flexible gateway between dispatch console IP networks and radio IP networks. The gateway forms a natural firewall between the two networks and provides an unsurpassed level of flexibility for integration into your IP infrastructure.

A P25 version is also available with the vocoder included at the gateway, eliminating the need for a vocoder at every operator position.

The gateway can also be easily connected with dispatch consoles such as RediTALK-Flex, altusomni or omnicore.


Interoperability

Connect multiple digital protocols without loss of features.

9

Analog Mode

For simple migration

IT Friendly

IP connectivity options so you won’t conflict with existing IT infrastructure.

Location Services

Supports location services features across many manufacturers.

Features

Complete Digital Radio Interoperability

Encryption

Protect against unauthorized access & eavesdropping

P25 Version Available

Eliminating the need for a vocoder at every operator position

Network Flexibility

Connect in more ways using SIP, multicast or unicast

digital radio gateway

Migrate

Analog and digital modes support simple migration

Flexible

Full choice of dispatch consoles and equipment

Reliable

Built in redundancies and back-up paths

DRG100 Digital RoIP Gateway - One Box, Many Protocols

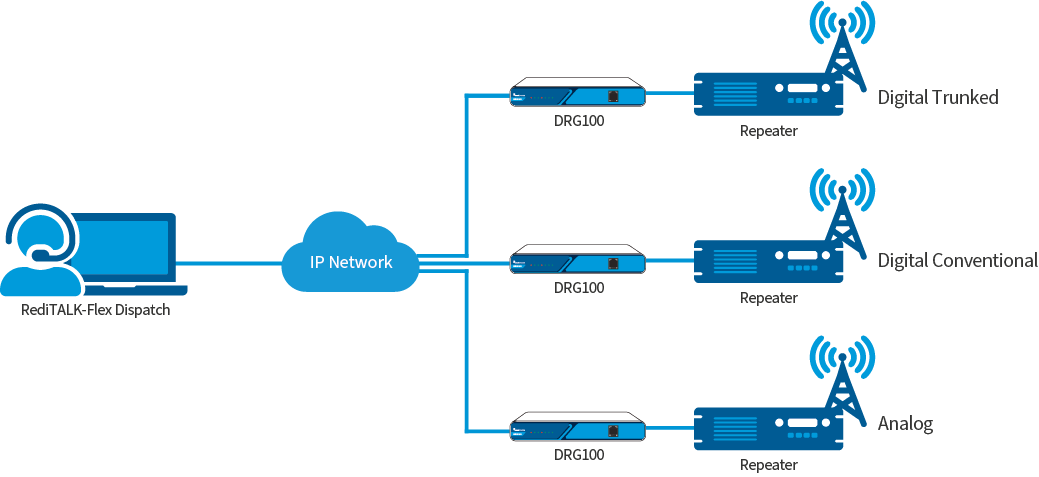

Interconnect Multiple Digital and Analog Radio Types

By using a gateway infrastructure you can also connect operators on PC consoles to radios of multiple radio types: analog or digital; conventional or trunked; open-standard or proprietary. The DRG range digital radio gateway can be programmed with a wide variety of digital protocols whilst the IPR range can connect analog radios to the same network.

Flyer

RoIP Gateways

Connect more in more ways.

roip gateway software

Technical Specifications

What is Included?
Feature
Power Supply 12 Vdc @ 100mA
Integrations Analog, DMR, NXDN, P25, MotoTRBO, Tetra, IDAS
Supported Signalling RTP (unicast, multicast), SIP
Network Monitoring SNMP
Web Configuration/Firmware Upgrade Included
Number of Channels 1
No of VoIP Channels 12
Type Desktop Unit



Optional Accessory

Vertical Mount Stand

Reduce the footprint and mount Omnitronics desktop gateways & media docks vertically instead of horizontally. Sturdy construction.
