VoIP and SIP Radio Solutions

Voice over IP (VoIP) technology is expanding the capabilities of two-way radio communication services through Local Area Networks (LAN) and Wide Area Networks (WAN). VoIP has enabled the implementation of a decentralized radio infrastructure that is flexible, provides a lower cost of ownership and facilitates improved interoperability.

960SIP

Hardware Dispatch Console

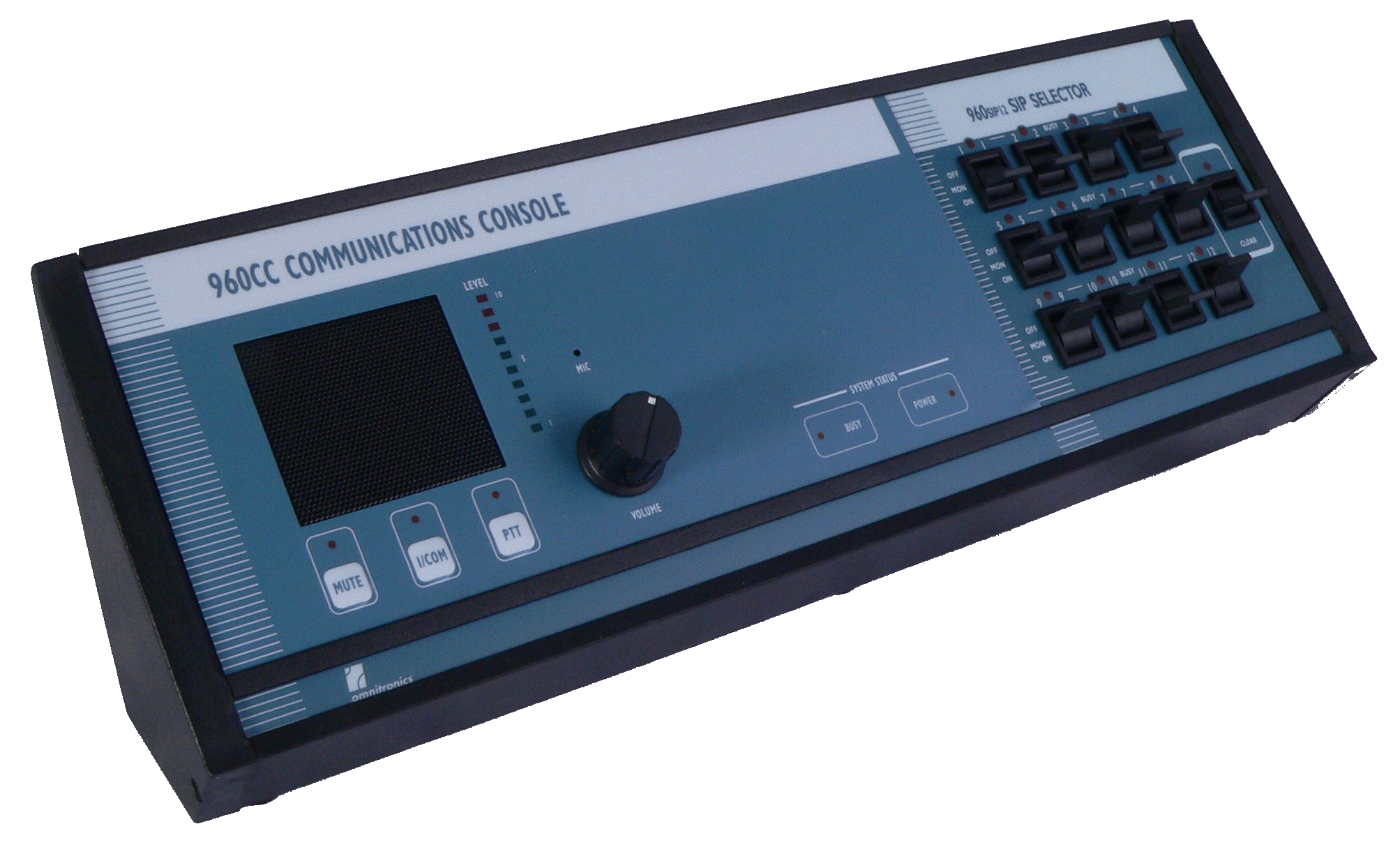

The Omnitronics 960SIP Dispatch Console is an integrated solution suited to organizations requiring a reliable, easy to use console for frequent access to multiple radio channels.

The SIP capabilities built into this product allow dynamic connections to remote radios. It supports multiple operators and channels.

Remote radios typically connect to an Omnitronics IPR100 VoIP Interface which has the ability to receive SIP connections. A very rugged hardware console, the 960SIP that can be used in harsh environments, including in dusty, dirty workshops and by people wearing gloves.

Its extremely high reliability and resilience, coupled with a startup time of less than 2 seconds, make the 960SIP Dispatch Console a popular choice.

Features & Advantages:

“Selected” and “Monitored” Audio available through front panel switches
Supports UHF, VHF, Marine band and Air band Radios
Operator to Operator Communication via Intercom
Easy access to a decentralized radio network using VoIP and SIP technology
Easy to install and begin to use immediately
Simple channel selection via 3-way switches with foreground and background audio selection
Operators can access and share one or more radio transceivers

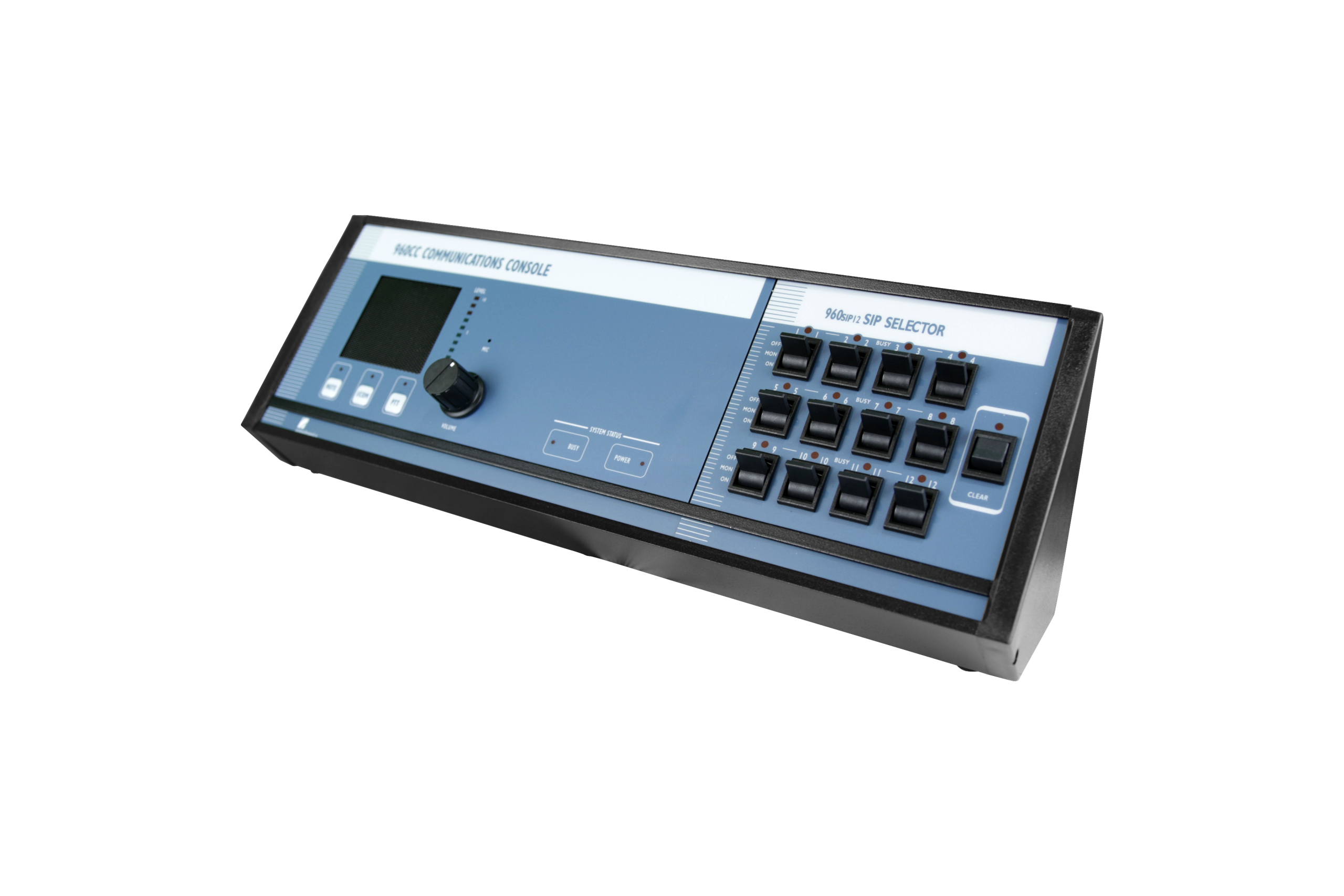

The 960SIP Dispatch Console can be customized to suit your needs. Choose from either a 6 or 12 channel SIP Selector. Various dispatch consoles are available including a 960CC or 960CSD depending on your SELCALL & DTMF Requirements. Handsets are also available upon request if the console is not required.

Comparison

Omnitronics 900-Series Interfaces

Included
Not Included

4-Wire E&M Port	935LRI	936MPI	970DD
4-W E&M Busy and PTT signal interface (contact, voltage, etc.)
4W E&M connects to handset port.
4W E&M connects to unbalanced radio port.
Isolated PTT using relay contacts and isolated COS opto-coupler input.
Transformer isolated audio.

Peripheral Ports	935LRI	936MPI	970DD
3 x Peripheral ports in parallel for 960-series handsets and consoles.

Unbalanced Radio Port	935LRI	936MPI	970DD
Unbalanced port connects through to handset port.
Busy (Mute) input sense controlled by links.
PTT sense provided by using different pins on connector .
Audio refenced to 0V (Note 1).

2-Wire Line Port (not POTS approved)	935LRI	936MPI	970DD
2W port connects through to 960-series Handset port.
2W port connects through to unbalanced radio port (Note 2).
Uses inband tone for PTT keying of radio (Note 3).
Applies a DC voltage across the line for PTT keying of radio (Note 3).

Digital Output Port	935LRI	936MPI	970DD
12-bit digital output connection controlled by DTMF sequence.
Open collector outputs.
Outputs have link-selectable pullups to 5V, 12V, or external pullup supply.
External control of output active-high or -low sense.
Output sequence can be hexadecimal or BCD.

Note 1. Use a 935LRI when connecting directly from a 960 handset or console to a radio with an unbalanced interface; otherwise, use a 936MPI when the radio has a balanced interface.
Note 2. The option to indicate that the radio is receiving is no longer available; the handset will receive the audio, but the Busy LED will not be active.
Note 3. Not approved for phone line (POTS) use, only private 2-wire lines.
