Overview

Why Digital Radio Gateways?

The Omnitronics Range of Digital Radio Gateways provide organizations with a range of benefits  including added security, redundancy and flexibility.

The gateways operate as an interface between Omnitronics dispatch solutions and a digital radio such as a MotoTRBO mobile, a DMR repeater or a P25 base.  Whether an organization is running different digital radio systems (including DMRP25Tetra etc) or a combination of them, it doesn’t matter.

The radio gateways translate voice and data into the same digital protocol, meaning differing radios and protocols will all be able to connect to the one network. Users are no longer restricted in their choice of protocol nor need to convert their entire network in one swoop. True interoperability is now within reach.

drg100 radio gateway

DRG100

The original Omnitronics Digital Radio Gateway uses proprietary hardware and operating system software to provide a secure, reliable and flexible gateway between dispatch console IP networks and radio IP networks.
drg200i radio gateway

DRG200i

Designed to address the need for accessing both channels on Tier II (Conventional) digital radios such as DMR, NXDN and dPMR. It will interface into controllers, repeaters and base radios that support an IP console interface.

Adding Value to Digital Radio Networks

Why use a Gateway for Digital Radio?

While digital radios already operate over IP, gateways still provide significant benefits to mission critical communications.



~|money~|font-awesome~|solid

Save on Cost

Allow radios with point-to-point protocols to be shared amongst a number of operator positions.

Additionally, only one vocoder is required.

~|icon_genius~|elegant-themes~|outline

True Interoperability

Not only can a mixture of radio types (both analog and digital) be interconnected on the one network but gateways also ensure interoperability across features like Location Services which are not tested as part of open-standards.
~~|icon_lock_alt~|elegant-themes~|outline

Secure Encryption

Worried about security of communications? Omnitronics RoIP Gateways offer built-in encryption, protecting against unauthorized access and eavesdropping.
1~|arrow_move~|elegant-themes~|outline

Flexible

Scaling up has never been so simple.
Networks can easily be added to and expanded when RoIP gateways are used. Have your full choice of dispatch consoles and equipment.



Z~|icon_box-checked~|elegant-themes~|outline

Compatible

Integrate easily with existing IT infrastructures without losing features.
~|icon_lifesaver~|elegant-themes~|outline

Reliable

Say goodbye to service interruptions!

RoIP gateways can build in redundancies and back-up paths – increasing availability and reliability of the network.

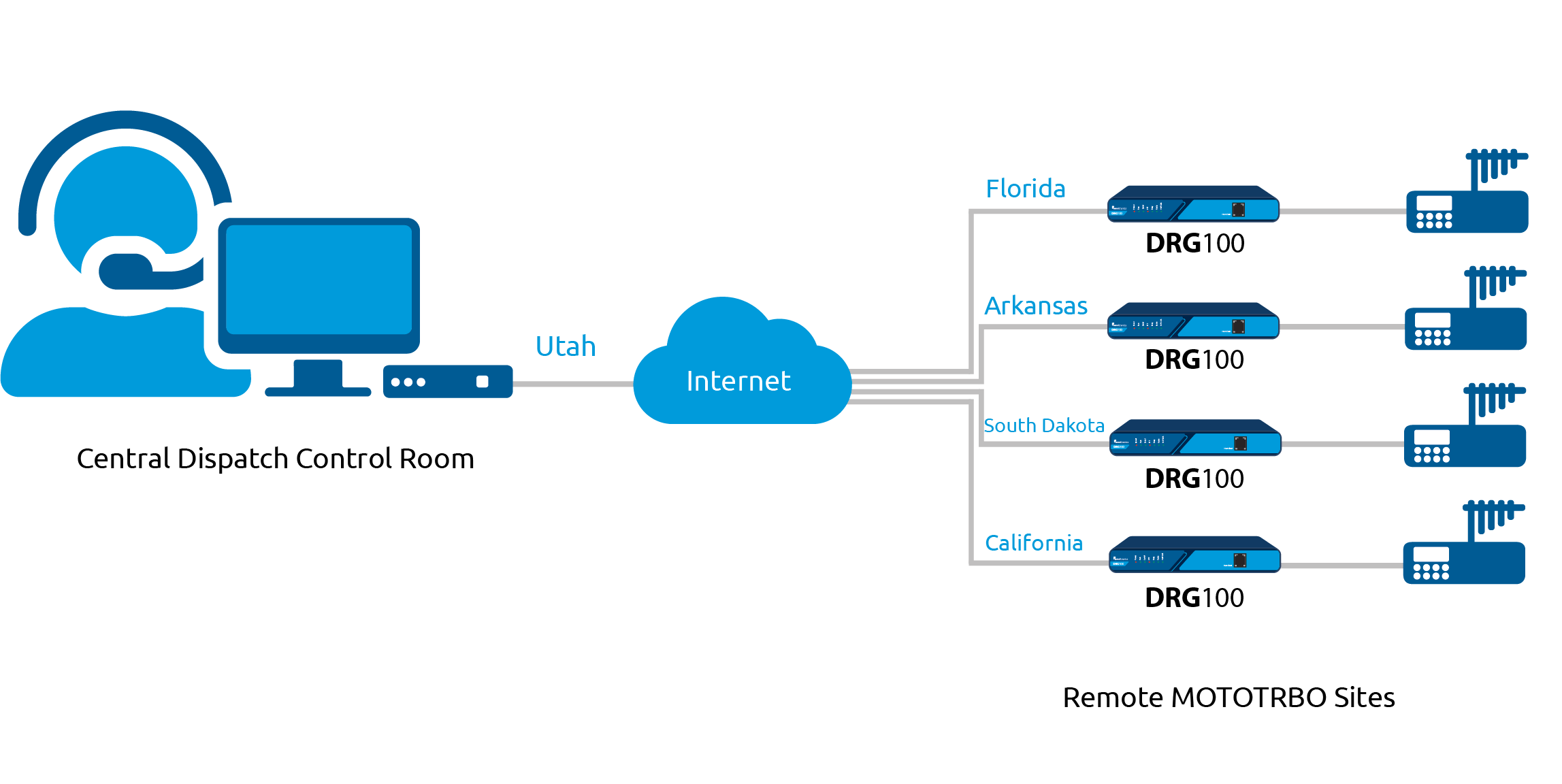

Wide Area Network

Connecting Remote MOTOTRBO Mobile Radios via IP

 A DRG100 is a simple and cost effective way to connect MOTOTRBO mobile radios all across the country to a Central Operations Center using IP.  Better yet, secure encryption means that the conversations are safe from eavesdropping.



Video

Benefits of Radio over IP

What is Radio over IP? See how RoIP can decrease costs and increase flexibility.





Number of channels (timeslots)
10/100-BaseT Ethernet port via RJ-45 connectors
4-wire plus E&M signals on Transceiver port compatible with Omnitronics 619 Audio Bridges
USB 'master' port
RS-232 radio control port
Connection to both transceivers and operator handsets
Powered from a 12V DC plug pack
Multicast addressing support
Multiple voice codecs for compression
Voice Activity Detection (VAD) with silence suppression for bandwidth efficiency
Software attenuation of Radio-side levels
Status and diagnostic LED indicators on front panel
Software configurable and firmware upgradeable via web interface
Static or dynamic IP address configuration
Optional voice encryption with user configurable key
Supports incoming SIP connections from Omnitronics equipment and software
Secure communications using AES encryption (Australia model only)

DRG100

Number of channels (timeslots) : 1
10/100-BaseT Ethernet port via RJ-45 connectors : 1
4-wire plus E&M signals on Transceiver port compatible with Omnitronics 619 Audio Bridges
USB 'master' port
RS-232 radio control port
Connection to both transceivers and operator handsets
Powered from a 12V DC plug pack
Multicast addressing support
Multiple voice codecs for compression
Voice Activity Detection (VAD) with silence suppression for bandwidth efficiency
Software attenuation of Radio-side levels
Status and diagnostic LED indicators on front panel
Software configurable and firmware upgradeable via web interface
Static or dynamic IP address configuration
Optional voice encryption with user configurable key
Supports incoming SIP connections from Omnitronics equipment and software
Secure communications using AES encryption (Australia model only)

DRG200i

Number of channels (timeslots) : 2
10/100-BaseT Ethernet port via RJ-45 connectors : 3
4-wire plus E&M signals on Transceiver port compatible with Omnitronics 619 Audio Bridges
USB 'master' port
RS-232 radio control port
Connection to both transceivers and operator handsets
Powered from a 12V DC plug pack
Multicast addressing support
Multiple voice codecs for compression
Voice Activity Detection (VAD) with silence suppression for bandwidth efficiency
Software attenuation of Radio-side levels
Status and diagnostic LED indicators on front panel
Software configurable and firmware upgradeable via web interface
Static or dynamic IP address configuration
Optional voice encryption with user configurable key
Supports incoming SIP connections from Omnitronics equipment and software
Secure communications using AES encryption (Australia model only)
